Overview
Professional IP STLs for Audio Delivery

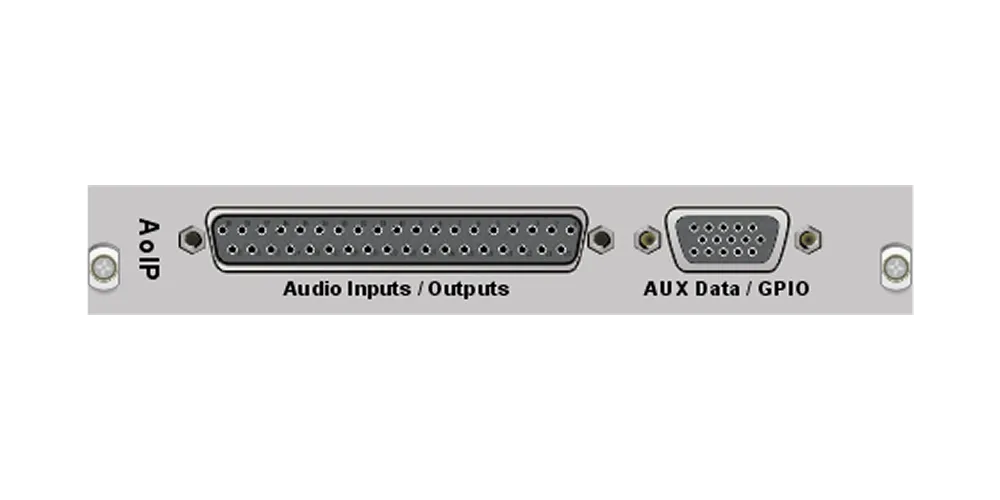

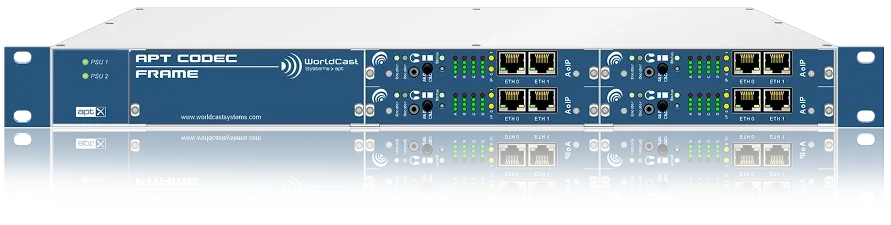

The APT Multi-Channel Codec is a compact and efficient solution for the transport of multiple channels of audio content over IP links. It can support up to 16 channels of audio within a single unit of rackspace - and even more IP streams when using multicast or multiple unicast technology. The 1RU frame can accommodate up to 4 AoIP modules, each equivalent to a stand-alone stereo duplex codec combining audio, dual IP transport and auxiliary data on board. It offers the entire range of audio formats and modes meeting the audio industry’s requirements: simplex, duplex, AES/EBU, AES/EBU with analog backup, analog with HI/LO or 600Ω impedance. A Dante Interface module option also enables direct connect to Dante or AES67 networks.
Product Version: 4.0.14
APT AoIP Multi-channel Codec:
APT AoIP Multi-Channel Codec
| Models | Audio Formats | Power Consumption | Main Power Supply | Height | |
|---|---|---|---|---|---|
APT IP Codec |
| 10VA per AoIP module | 90-264 VAC / 47-63Hz | 1U |
Benefits
- Supports up to 16 channels of Audio in 1RU and even more IP streams with Multicast or Multiple Unicast
- Outstanding audio quality with low delay, cascade-resilient aptX Enhanced
- Many other standards & coding options available
- Robust DSP-based platform for mission-critical operation
- Redundant Power Supplies as standard, no single point of failure
- Hot-swappable cards enable uninterrupted audio
- Support of Specific-Source Multicast (SSM)

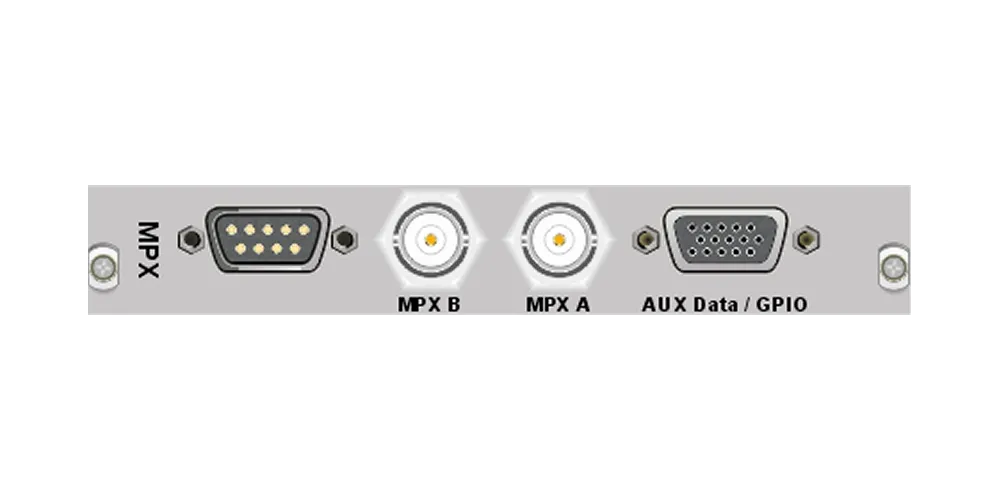

- 192/128kHz Sampling supports Digital MPX/Composite over AES and fully digital transfer
Product Application
AoIP Distribution
Highlights
Solid APT Performance
Secured, Low-Latency IP Transport
SureStream
Available on all APT codecs, SureStream ensures perfect audio or MPX delivery over IP by sending multiple stream copies across diverse network paths. Its intelligent redundancy engine reconstructs a flawless, low-latency stream at the receiver end - eliminating dropouts and ensuring true broadcast-grade reliability, even over imperfect networks.
Dante Spoken Here
APT Dante Module
The APT Dante Network Interface enables you to connect your APT Multi-Channel AoIP Codec directly to a Dante or AES67 network. This enables the codec to become fully integrated into your in-house network ecosystem, ensuring interoperability with near-zero latency and synchronization. With the Dante interface fitted, your AoIP multichannel codec becomes the gateway from your local Dante domain to any network destination over external networks.
Monitoring & Control
Effortless Supervision. Advanced Control
Smart Add-On
Advanced Facility Control
Virtual ScriptEasy
ScriptEasy is smart facility control software that automates site operations and resolves critical errors in real time. With its intuitive visual interface and customizable dashboards, it brings intelligent monitoring and control across your network. Available as SaaS, on-premise, or embedded.
Smart Add-On
Monitor Your Product from the Cloud
Kybio NMS
Kybio NMS is included with your WorldCast product - giving you 1 year of powerful, cloud-based monitoring at no extra cost. Centralize data across sites, receive real-time alerts, and visualize performance with smart dashboards. Setup is fast, with autoconfiguration and expert support included.
