Overview
Reliable Insights on FM or DAB Operations

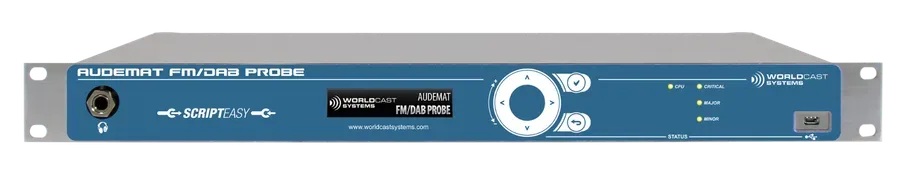

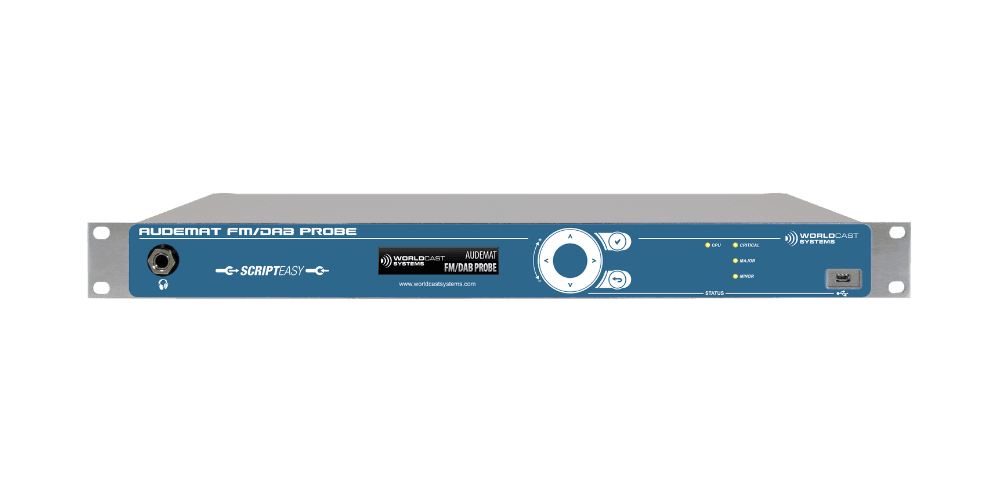

The Audemat FM/DAB Probe is a complete radio monitoring solution to perform advanced signal analysis, on-site and of broadcast coverage area. Designed to be installed in FM or DAB (SFN or MFN) networks (Single or Multiple Frequency Networks), the Audemat FM/DAB Probe is feature-packed with a user-friendly web interface, alarm notification by email or SNMP traps, and is equipped with telemetry board (via ScriptEasy) and audio output connectors.
The advanced software tools provide a deep signal and content analysis with impulse response representation, TII, audio streaming, ETI recording, visual slide-shows, DLS and services display to enable users to hear and see in real-time the same content as their audience of listeners. The powerful and innovative platform can monitor up to 50 channels sequentially and up to 2 channels continuously, to ensure that your FM network complies with both legislation and expectations.
Product Version: 1.0
Audemat FM/DAB Probe
Benefits
Audemat FM/DAB Probe is a must-have for ensuring you are providing the best, continuous service to listeners while meeting all signal and conformity regulations.
With this powerful, compact device, broadcasters have access to a number of features for different monitoring applications. This includes scanning the band, qualifying the reception quality, analyzing in-depth RDS data, and more.
Product Highlights
The Key to Optimal Quality of Service
Detect Broadcast Frequencies
Scan and Monitor the FM or DAB Band
A quick FM/DAB band scan is available to visualize the DAB and FM spectrum. It also can be used to facilitate the monitoring configuration.
Qualify the Reception Quality
Advanced FM/DAB Monitoring
Key measurements and parameter values are displayed in intuitive graphical formats, making analysis quick and efficient. Performance trends are stored and viewable over a rolling three-month period to support long-term monitoring and diagnostics.
Monitor an SFN Network
Band Scan & SFN Monitoring
To detect any failure or variation, the transmitter peaks (up to 5) are evaluated by time / levels and the decoding of the TII makes it possible to identify the transmitters.
Stream Your Program
On Air Verification
Following an alarm, on-air FM or DAB verification is possible. Users can remotely stream the audio, in compressed or in native format, and visual the associated DSL and slideshow.
One View for Immediate, Complete Insights.
All Monitoring Channels in a Single Interface
The Audemat FM/DAB Probe provides a unified view of all monitored stations, allowing you to access key information at a glance. From main alarms and audio vumeters to RDS data and more, everything you need is clearly displayed in one intuitive dashboard.
Add-On Solutions for Advanced Monitoring
Effortless Supervision. Advanced Control.
Smart Add-On
Advanced Facility Control
Virtual ScriptEasy
ScriptEasy is smart facility control software that automates site operations and resolves critical errors in real time. With its intuitive visual interface and customizable dashboards, it brings intelligent monitoring and control across your network. Available as SaaS, on-premise, or embedded.
Smart Add-On
Monitor Your Product from the Cloud
Kybio NMS
Kybio NMS is included with your WorldCast product - giving you 1 year of powerful, cloud-based monitoring at no extra cost. Centralize data across sites, receive real-time alerts, and visualize performance with smart dashboards. Setup is fast, with autoconfiguration and expert support included.
They Rely on
Audemat for Monitoring
Need Technical Support?
Our team will be happy to assist you with any Technical Support.
Please make your request via your account login. Our team will contact you as soon as possible. For emergencies, you can also contact our support hotline by phone.
Related Resources
Documentation
Visit our Download Center for product brochures, manuals, and release notes.
