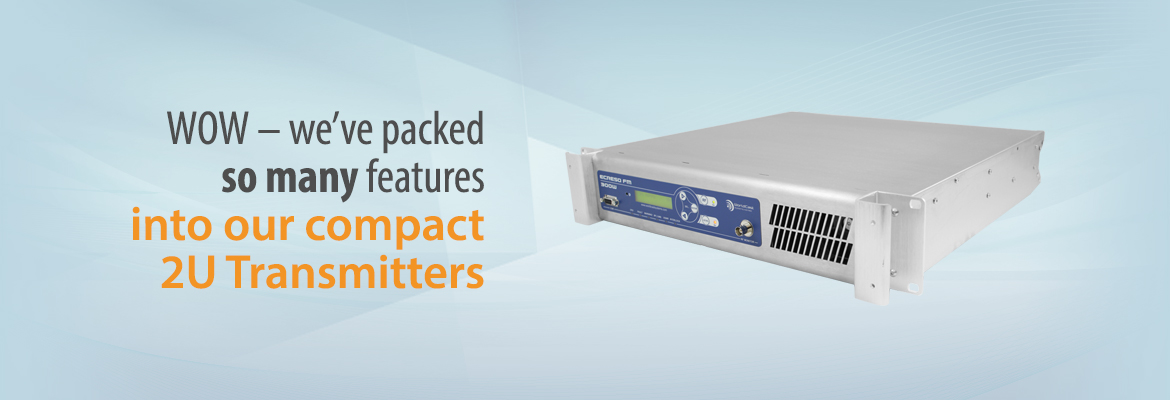

Combining the very latest technologies with ECRESO’s proven RF experience, the Ecreso FM 100W Transmitter has been designed to offer an innovative and highly reliable solution for low power transmission.
Based on a 6th Generation MOSFET, the Ecreso FM 100W is highly robust and efficient. Top signal quality and performance are achieved thanks to the “FM Band Direct to Frequency” Digital Modulator. It also offers several innovative features such as dynamic RDS encoding and 5 band sound processing.
Fully featured for local maintenance and configuration, the Ecreso FM 100W Transmitter allows extensive remote control by Web server, SNMP, RS232 or GPIOs.
The Ecreso FM Transmitter range also features an integrated multi-band sound processor! This fully digital sound processor offers the highest signal quality and outstanding reliability as no additional hardware is required*.
You can choose from a wide-band or a multi-band version to achieve the level of processing required at your site and the processor is supplied with a full set of presets for many different formats and requirements.
Sound Processor interface
Automatic Gain Control
The first stage of the processor is an automatic gain control which regulates the perceived volume level of the station output across all audio sources and formats. It uses predictive algorithms and protects against unwelcome increases in noise.
Equalization, Bass and Treble Enhancers
The AGC is followed by enhancers which embellish both the low and high frequencies. Combined with 3 parametric equalizers, they enable the creation of a distinct sonic signature.
Stereo Enhancer and Limiter
A stereo enhancer can be used to improve the stereo image of your station when using non-mono content. It also includes a stereo limiter to improve the quality of your station in areas with problematic coverage.
5 Band Processor
The 5 Band Processor dynamically adjusts the gain of each audio band. Depending on the selected preset, it can work as a slow and purist multi-band leveler, or as a fuller processor to create a strong sonic signature. The fidelity parameter enables you to fine tune the bands according to your preference; from a purist sound to a more colored texture.
5 band Limiters
5 limiters have been designed to facilitate the work of the final clipper. For soft formats, the limiters provide smooth protection for your final audio and for commercial stations, they can be used to create extra loudness.
This section uses several limiters including HF and final low distortion limiters. In addition, and independently of any preset, the ECRESO FM Transmitter can be configured with an MPX Power Limiter and a deviation Hard Clipper for transmitter protection.
* Check your version for compatibility
WorldCast Systems offers a standard warranty of 3 years on all our FM transmitters and up to TEN YEARS' Warranty on our range of compact FM transmitters and new ECRESO FM 5kW/10kW for a small additional charge.
No other FM Transmitter Manufacturer even comes close to that commitment or confidence! We can offer the 10 Year Warranty with confidence thanks to:
EMR is a proactive service available on ECRESO FM Transmitters. It sends the user regular reports on the status of key parameters such as temperatures, currents and voltages, plus information on the performance and lifespan of components such as the fan and power supply of the transmitter.
With detailed logging and trend analysis, Expert Maintenance Reporting can identify slow-burning problems and issue warnings well in advance to allow for corrective action to be taken. A map-based display of current statuses and detailed, user-friendly reports and graphs can be accessed around the clock in the EMR user page.
The WorldCast Manager simplifies the management of all SNMP-enabled devices in a network, providing real-time status, historical data and visualization of multiple devices from a single screen. The intuitive and simple-to-use interface shows all devices located at your site(s) displaying product information, alerting you to any alarms and providing one-click access to the unit’s web-based control interface.
The WorldCast Manager is compatible with all WorldCast Systems’ equipment as well as SNMP devices from ANY manufacturer.
“Imagine if we could offer our listeners a sophisticated listening experience which delivered quality, space, transparency and avoided listener fatigue. Imagine if we could offer a sound that was simply a joy to listen to.”
«The compact design of the ECRESO is not only a neat solution, it also makes it really easy to conduct maintenance tasks with no nasty surprises! They have totally changed our way of operating – very much for the better!»
Sylvain Cavet, Technical Director, Broadcast-associés, France
«We have a 10 year warranty on the Ecreso system, a sign of a manufacturer with confidence in their design and one of these things that helps me sleep a little easier.»
Mike Woodworth, Peak Broadcasting Company, Arizona, USA
|ECRESO FM 100W|
|Frequency range||87.5 to 108 MHz by 10 kHz steps|
|Frequency stability||< 10-6 per year|
|HF output||N Type, 50 Ω|
|Power range||Range: 5-100 W, Setting: 0-110 W|
|VSWR||< 1.35, optimal performance: < 1.1 , protection : >1.5|
|Spurious and harmonic suppression||> 75 dBc|
|Efficiency||up to 57%|
|Max consumption||200 W|
|Voltage||100 VAC to 264 VAC, 47 Hz - 63 Hz|
|Power factor||> 0.9|
|Analog input (LINE1)||2 XLR connectors, balanced, >10 kΩ (600 Ω jumpers selectable), software adjustable level (-18/+18 dBu range)|
|AES Input (LINE2)||1 XLR connector, balanced, >110 Ω, software adjustable level (-20 to 0dBFS range), AES 16,24,32 bits, up to 192 kHz|
|2 Multiplex (MPX/SCA) inputs||BNC type, unbalanced, >5 kΩ, software adjustable level (-18/+18 dBu range)|
|Bandwidth||> 40 Hz to 53 kHz @ 0.1 dB, > 20 Hz to 60 kHz @ 0.2 dB, > 60 kHz to 80 kHz @ 0.4 dB|
|Intermodulation distortion||< 0.05%|
|FM S/N ratio||> 80 dB RMS @ 75 kHz deviation|
|AM noise||>55 dB, weighted/unweighted, sync/async, RMS/CCIR (20-20 000 Hz)|
|Bandwidth||> 20 Hz to 15 kHz @ 0.1 dB|
|38 kHz discontinuance||> 50 dB|
|Stereophonic crosstalk||> 50 dB|
|Bandwidth||> 40 Hz to 15 kHz @ 0.1 dB|
|Out of band rejection||> 40 dB @ 19 kHz|
|Preemphasis||0 μs, 50 μs or 75 μs|
|Environmental / Physical specifications|
|Overall dimensions||Overall: 487.5 X 2U X 475 mm, Rack size: 437.7 X 82 X 443.8 mm (WxHxD)|
|Enclosure depth required||600 mm|
|Mounting||19’’enclosure, with 4 M6X12 screws|
|Weight||~9 kg / ~9.5 kg|
|Operating temperature||Nominal: 5°C to 45°C, Maximum: 0°C to 50°C|
|Storage temperature||-20°C to +70°C|
|Humidity||5 - 95 % non-condensing relative humidity|
|Altitude||Up to 3900 m|
|Cooling||1 fan: between 10 l/s and 30 l/s depending on ambient temperature|
|Marking||CE, FCC, ICC|
|Standards||1999/5/CE (R&TTE), ETS 302 018 (EMC), ETS 300 384 (Radio), NF EN 60215 (Safety)|
|TF00452||ECRESO FM 100W|
|CD01001||5-Band Sound Processor|
|ST01276||Digital GPIO board|
|SP01615||Analog GPIO board|
|ST01314||RF metering board|
|SP01260-A0||Internal surge protector|
|10 Year Warranty|
|EMR4||10 Year Warranty (Up to 750W)|
|Expert Maintenance Reporting|
|EMR6||Expert Maintenance Reporting|
