Looking for flexible & scalable, redundant FM transmission system for your radio?WorldCast Systems provides you a customized & reliable solution.
With the Ecreso changeover, broadcasters can simultaneously manage up to 8 transmitters and, when a fault is detected, automatically switch to the reserve transmitter - keeping your program ON-AIR.
WorldCast Systems provides this extremely reliable system either as a standalone product or as a complete turnkey solution with customized rack integrations.
The unit is fully equipped with all the features needed with all interfaces: safety loops, communication bus (CAN or SNMP) and RF switched.
The Ecreso 1+1 and Ecreso N+1 also provide full remote control and monitoring through a web interface. For local operation, the front panel enables a fast and easy access to relevant parameters, status and buttons for manual switching or maintenance actions.
The Ecreso changeover solution is the optimal solution for radios that cannot afford 24/7 immediate on-site maintenance. When a fault arises, a smart & steady algorithm automatically switches from the main transmitter to the reserve trasmitter based on program priority and the level of severity.
Highly flexible, Ecreso solutions meet the needs of small and large scale radio broadcasting with a scalable system capable of monitoring up to 8 FM transmitters simultaneously and to back them up with one reserve unit.
Our products are designed to provide the highest reliability and to STAY ON-AIR! Robust components and security loops have been implemented to protect the complete system and ensure maximum uptime.
Then, in the event of control unit fault, the transmitters stay on-air with their latest configuration.
The Ecreso 1+1 and N+1 solutions natively provide a remote access to the unit to simplify maintenance operations.
From a standard web browser, the operators have access to the full configuration including:
Customizable switching conditions

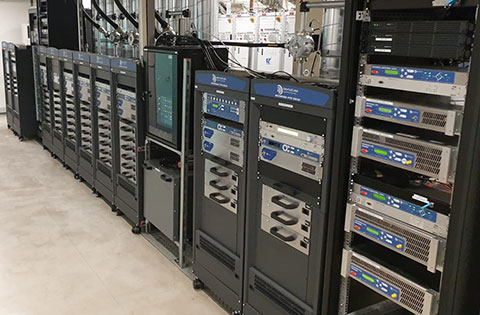

A complete Transmission room installed with 1+1 Redundancy solution for Medium and High Power transmitters

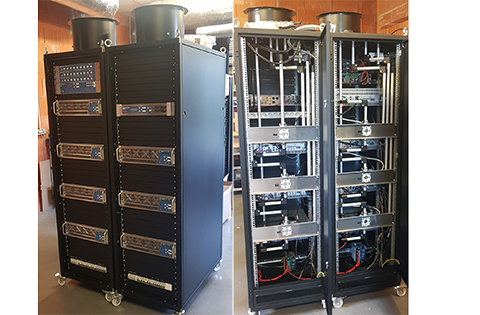

6+1 3kW FM transmiter, redundancy solution maximizing the ON-AIR time

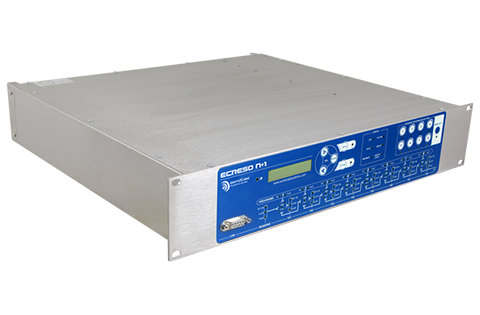

WorldCast Systems provides extremely reliable N+1 systems as complete turnkey solutions with customized and compact rack integrations. The ECRESO N+1 control unit can manage up to 8 FM programs (up to 8+1 systems). Using standard SNMP protocol, any fault on the main transmitter is automatically detected by the ECRESO N+1 which switches to the reserve transmitter.
The ECRESO N+1 supplies the intelligence for the system and all delays, program priorities, switching conditions and many other parameters are fully configurable.
The control unit is fully equipped with all interfaces: safety loops, CAN bus and RF switches (from N to 1’5/8). The ECRESO N+1 provides powerful control through its intuitive Web based interface and, for local and manual operation, the front panels offer fast and easy access through screens, status LEDs and buttons for manual switching or other actions.
The N+1 system also includes a set of AUDIO/MPX SWITCH equipment (fully managed by the ECRESO N+1) that feeds the correct audio/composite signals to the reserve transmitter.

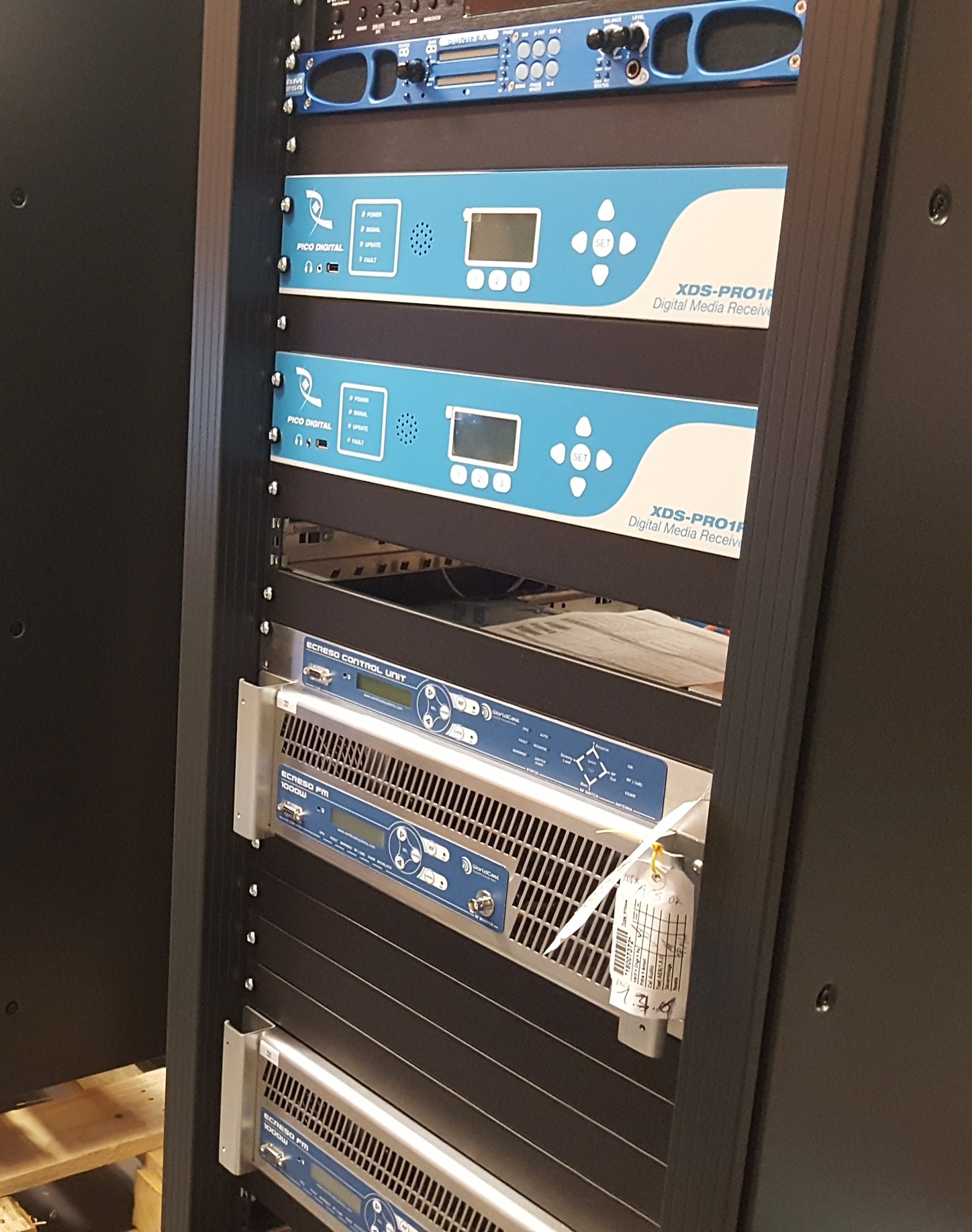

Ecreso can provide highly reliable Dual Drive and 1+1 systems for complete transmitter redundancy. At the heart of these redundant systems is the ECRESO CONTROL UNIT which can detect any fault and automatically switch to the reserve transmitter or exciter in case of failure of the on-air system. It can also act as the central management unit of your Ecreso FM Transmitter.
The ECRESO CONTROL UNIT can be equipped with GPIOs and TCP/IP communications for web and SNMP based monitoring and control.
