Overview

Designed for reliability and longevity, the modular design of the Ecreso FM 5000W is based on the ECRESO FM 1500W/2000W Amplifier module.

This amplifier delivers the best cost/watt ratio over the lifetime of the transmitter, has the lowest heat dissipation available on the market today and, with a maximum output power of 5500W, it provides a comfortable margin over nominal power. The amplifier redundancy ensures that, even if you lose one amplifier module, you still have more than 2500W on air.

A crystal-clear signal is achieved using the ECRESO FM 100W exciter and its direct to channel digital modulator and the system can be fully controlled and monitored through the built-in Web interface and SNMP protocol.

Powerful
Performance

Audemat ScriptEasy Powerful Performance

  • Digital FM modulator "direct to channel"
  • Highest signal quality
  • Perfect audio fidelity
  • Modular design
  • Protected against VSWR, temperature, over-voltage, short circuit, overload...
  • Switching power supplies with large voltage range
  • Active surge current limiting
  • Optional surge suppressor
  • MPX over AES compatibility

Powerful
Control

Audemat ScriptEasy Powerful Control

  • Advanced Measurement Interface (AMI)
  • Intuitive web interface
  • Full SNMP management
  • Email Notifications

Powerful
Savings

Audemat ScriptEasy Powerful Savings

  • Up to 70% efficiency
  • 6th MOSFET generation (WorldCast Systems design)
  • Reduced consumption and operational costs
  • Reduced heat and cooling costs
  • Longer component life span
  • Reduced maintenance costs
  • Built-In functionality

Features

Digital Exciter

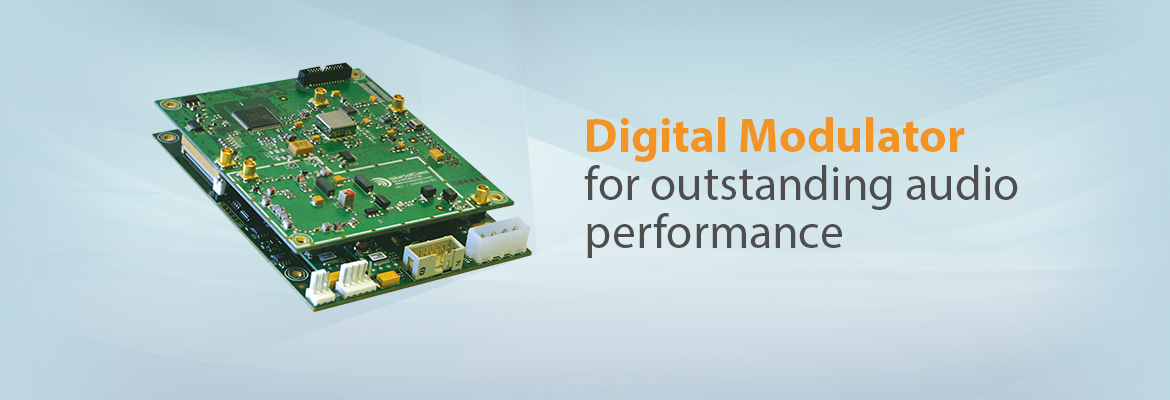

DIGITAL EXCITER

  • Digital FM modulator « direct to channel »
  • Highest signal quality
  • Perfect audio fidelity
  • Several built-in broadcast tools
  • 5 band sound processor
  • Control of all signal parameters
advanced control

ADVANCED CONTROL

  • Advanced Measurement Interface (AMI)
  • Intuitive Web Interface
  • Full SNMP Management
advanced control

UP TO 70% EFFICIENCY

  • 6th MOSFET generation (WorldCast Systems design)
  • Reduced consumption and operational costs
  • Reduced heat and cooling costs
  • Longer component life span
  • Reduced maintenance costs
highly reliable

HIGHLY RELIABLE

  • Protected against VSWR, temperature, over-voltage, short circuit, overload...
  • Switching power supplies with large voltage range
  • Active surge current limiting
  • Optional Surge Suppressor
  • Automatic program input switching and recovery (audio and MPX)
  • Audio Backup (from µSD card)
  • Internal RDS Backup
redundancy

REDUNDANCY

  • Modular design
  • Several independent amplifiers
  • Stay ON AIR despite PSU or PA Loss
  • Coupler with full unbalanced input management


5 Band Sound Processor

Available soon on your new or existing Ecreso FM Transmitter*

The Ecreso FM Transmitter range also features an integrated multi-band sound processor! This fully digital sound processor offers the highest signal quality and outstanding reliability as no additional hardware is required.

You can choose from a wide-band or a multi-band version to achieve the level of  processing required at your site and the processor is supplied with a full set of presets for many different formats and requirements.

  • Hosted in direct to frequency Digital Modulator
  • Highest quality processing from audio input to RF output
  • Powerful DSP-based processing
  • Complete 5-band architecture
  • Factory presets for all formats
  • Easy to fine tune through intuitive GUI
  • Real-time meters at each stage
  • No additional hardware:
    maximum reliability, no maintenance
    .

Sound Processor interface


Processing stages

Audio Processor on Ecreso Transmitter. Processing stages

Automatic Gain Control
The first stage of the processor is an automatic gain control which regulates the perceived volume level of the station output across all audio sources and formats. It uses predictive algorithms and protects against unwelcome increases in noise.

Equalization, Bass and Treble Enhancers
The AGC is followed by enhancers which embellish both the low and high frequencies. Combined with 3 parametric equalizers, they enable the creation of a distinct sonic signature.

Stereo Enhancer and Limiter
A stereo enhancer can be used to improve the stereo image of your station when using non-mono content. It also includes a stereo limiter to improve the quality of your station in areas with problematic coverage.

5 Band Processor
The 5 Band Processor dynamically adjusts the gain of each audio band. Depending on the selected preset, it can work as a slow and purist multi-band leveler, or as a fuller processor to create a strong sonic signature. The fidelity parameter enables you to fine tune the bands according to your preference; from a purist sound to a more colored texture.

5 band Limiters
5 limiters have been designed to facilitate the work of the final clipper. For soft formats, the limiters provide smooth protection for your final audio and for commercial stations, they can be used to create extra loudness.

Final Limiters
This section uses several limiters including HF and final low distortion limiters. In addition, and independently of any preset, the ECRESO FM Transmitter can be configured with an MPX Power Limiter and a deviation Hard Clipper for transmitter protection.

* Check your version for compatibility


ADDITIONAL FEATURES

Advanced Communication Pack

Advanced Communication Pack

  • Intuitive and secured Web Interface (TCP/IP)
  • Advanced Measurement Interface
  • Full SNMP Management
  • Audio Backup on µSD card
Embedded FM Limiter

Embedded FM Limiter

  • Automatic Gain Control
  • FM Limiter
  • MPX power limiter (ITU 412)
  • FM Hard Clipper
Dynamic RDS Encoder

Dynamic RDS Encoder

  • Supports PI, PS, TP, TA, MS, PTY, PTYN, DI, CT, AF, RT
  • Dynamic PS Scrolling
  • Pure and stable signal thanks to Digital Modulator
  • Delivers Audemat’s expertise in RDS
Single Frequency Network

Single Frequency Network

  • 10 MHz input for RF carrier synchronization
  • Adjustable program delay (on audio / MPX inputs)

GPIO Boards

GPIO Boards

  • Digital GPIO Board : main alarm monitoring and control (RF off/on, Standby, Presets...)
  • OR Analog GPIO Board : with analog output voltages (forward power, temperature...)

Digital Stereo Encoder

Digital Stereo Encoder

  • High speed DSP circuitry
  • Subcarrier perfect synchronization
  • Amazing signal quality
Internal Surge Protector

Internal Surge Protector

  • Powerful protection against lightning
  • Visible status LED
  • Easy to replace
Email notifications

Email Notifications

  • Alarm sending by SMTP
  • Easy configuration of each notification
  • Same notifications can be sent by SNMP
MPX over AES

MPX over AES

  • Improved MPX signal quality
  • No hardware change
  • Compatible with MPX over IP APT codecs

REDUNDANT SYSTEMS

Available in Redundant 1+1 & N+1 Systems. Find Out More:  1+1   N+1


USER INTERFACE

Advanced Measurement InterfaceAdvanced Measurement Interface (AMI)


Be Proactive with Expert Maintenance Reporting

EMR is a proactive service available on ECRESO FM Transmitters. It sends the user regular reports on the status of key parameters such as temperatures, currents and voltages, plus information on the performance and lifespan of components such as the fan and power supply of the transmitter.

With detailed logging and trend analysis, Expert Maintenance Reporting can identify slow-burning problems and issue warnings well in advance to allow for corrective action to be taken.  A map-based display of current statuses and detailed, user-friendly reports and graphs can be accessed around the clock in the EMR user page.

Learn more about
EMR

Advanced Communication Pack

Connect with WorldCast MANAGER

The WorldCast MANAGER Desktop simplifies the management of all SNMP-enabled devices in a network, providing real-time status and visualization of multiple devices from a single screen. The intuitive and simple-to-use interface shows all devices located at your site(s) displaying product information, alerting you to any alarms and providing one-click access to the unit’s web-based control interface.

Free to download, the WorldCast MANAGER Desktop is compatible with all WorldCast Systems’ equipment as well as SNMP devices from ANY manufacturer.

The WorldCast MANAGER Server adds recorded measurements, detailed logs, alarm management / notifications and more…

Learn more about
WorldCast MANAGER Server
  Learn more about
WorldCast MANAGER Desktop


user report

User report

"The efficiency, remote monitoring capability and reliability that the ECRESO units could offer at a relatively attractive price level meant that they were undoubtedly the best, overall supplier."
Maciej Lipiński, CTO of BCAST, Poland

Specifications

Current version: 1.5

ECRESO FM 5000W
Frequency range87.5 to 108 MHz by 10 kHz steps
Frequency stability< 10-6 per year
HF output 1’5/8 Type,  50 Ω
Power range500-5500 W
VSWR< 1.35, Optimal performance: < 1.1
Spurious and harmonic suppression> 75 dBc
Efficiencyup to 70%
Max consumptionbetter than 7450W
Voltage184 VAC to 264 VAC, 47 Hz - 63 Hz
Power factor> 0.9
Fuses10 AT (ECRESO FM 100W)
Analog input (LINE1)2 XLR conectors, balanced, >10 kΩ (600 Ω jumpers selectable), Software adjustable level (-18/+18 dBu range)
AES Input (LINE2) 1 XLR conector, balanced, >110 Ω, software adjustable level (-20 to 0dBFS range), AES 16,24,32 bits, up to 192 kHz
2 Multiplex (MPX/SCA) inputs 2 BNC type, unbalanced, >5 kΩ, Software adjustable level (-18/+18 dBu range)
Composite operation
Bandwidth> 40 Hz to 53 kHz @ 0.1 dB,  > 20 Hz to 60 kHz @ 0.2 dB, > 60 kHz to 80 kHz @ 0.4 dB
Intermodulation distortion< 0.05%
FM S/N ratio> 80 dB RMS @ 75 kHz deviation
AM noise< 0.1% (50 dB) RMS (20-20 000 Hz)
Stereo operation
Bandwidth> 40 Hz to 53 kHz @ 0.1 dB,  > 20 Hz to 60 kHz @ 0.2 dB, > 60 kHz to 80 kHz @ 0.4 dB
38 kHz discontinuance> 50 dB
Stereophonic crosstalk> 50 dB
Mono operation
Bandwidth> 40 Hz to 15 kHz @ 0.1 dB
Out of band rejection> 40 Hz dB @ 19 kHz
Preemphasis0 µs, 50 µs or 75 µs
Environmental / Physical specifications
Overall dimensions11U x 19"
Enclosure depth required800 mm
Weight~23 kg
Operating temperatureNominal: 5°C to 45°C, Maximum: 0°C to 50°C
Storage temperature -20°C to +70°C , < 10 years
Humidity5 - 95 % non-condensing relative humidity
AltitudeUp to 3900 m
CoolingAir cooling performed by each module from the front panel to the rear (other configurations on demand).
MarkingCE, FCC, ICC
Standards1999/5/CE (R&TTE), ETS 302 018 (EMC), ETS 300 384 (Radio), NF EN 60215 (Safety)

Order information

STANDARD VERSION
REFDescription
TF00415-xECRESO FM 5000W
Software Options
SP01319Communication Pack
CD00106Basic RDS
CD00110FM Limiter
Hardware Options
SP01319GPIO board
SP01615Analog GPIO board
SP01322RF metering board
ST01792SFN Option
SP01260Internal surge protector
ON DEMAND SERVICES
Redundancy solutions : Dual Drive, 1+1, N+1
Dummy loads, adapters, cables
Cavity filters, combiners and antenna systems
Coverage Study
Turnkey solutions for broadcasting site
