AUDEMAT ­FM MC5 / MODULATION ANALYZER
Multi-Purpose FM Measurement Equipment

Overview

AUDEMAT FM MC5 is the most comprehensive and versatile measurement platform available for FM in the world today.

The system offers both mobile RF coverage measurement and extensive modulation analysis in a single comprehensive system.

The fully portable AUDEMAT FM MC5 includes the most complete list of measurement tools ever included in a single platform. Based on fully digital technology, it offers test and measurement class accuracy.

Powerful
Performance

Audemat ScriptEasy Powerful Performance

  • High-accuracy audio and FM measurements
  • Measurement reproducibility through fully digital platform
  • Compliant with the latest measurement standards

Powerful
Control

Audemat ScriptEasy Powerful Control

  • Multi-program on-field measurements with RF coverage analysis
  • Automation capabilities with dedicated scripting API
  • Bench measurements and RF Drive Testing records

Powerful
Savings

Audemat ScriptEasy Powerful Savings

  • Rich set of built-in generators and analyzers for analog radio
  • Simultaneous measurements of audio, composite and RF signal
  • Time-saving automatic generation of reports

Features

Perform deep audio and FM measurements with the built-in audio, composite and RF generators / analyzers

AUDEMAT FMMC5 Generate audio, MPX and RF signal

Generate audio, MPX and RF signal

 Analyze Quickly and easily the audio and FM signal

 Analyze Quickly and easily the audio and FM signal

Control the on-field signal for multiple frequencies at a single time

AUDEMAT FMMC5 Perform local FM band scan

Perform local FM band scan

Carry out FM Drive Testing on single or multiple frequencies

Carry out FM Drive Testing on single or multiple frequencies

Simplify the measurements and analysis with automatic measurements and reports

AUDEMAT FMMC5 Schedule complete frequencies analysis

Schedule complete frequencies analysis

Verify in an at-a-glance view the validity of measurements

Verify in an at-a-glance view the validity of measurements

Check the measurements directly from the FM-MC5 touch screen

Modulation measurement

Modulation measurement

RDS AF list

RDS AF list

RF spectrum

RF spectrum

MPX spectrum

MPX spectrum

Applications

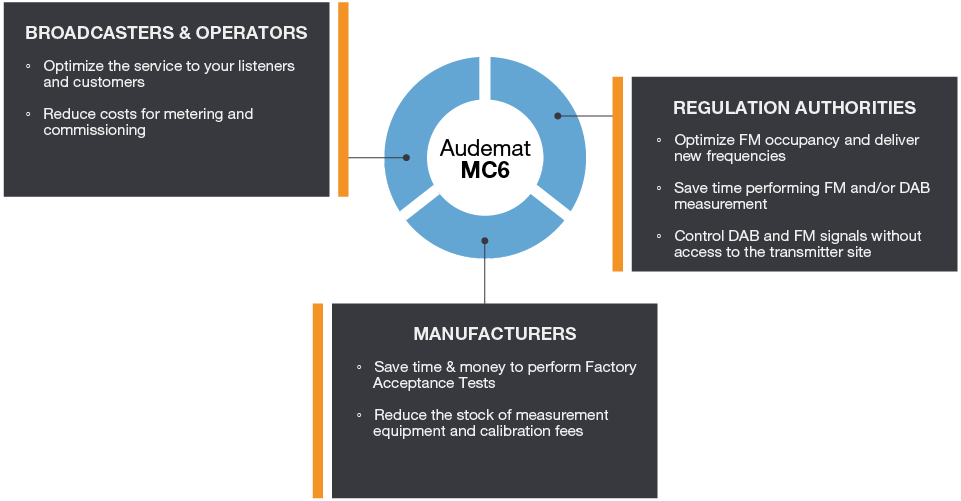

AUDEMAT FM MC5 / MODULATION ANALYZER can be used by:

Audemat FM MC5 application


Audemat FMMC5 Signal conformity checkSignal conformity check

Generate and measure the audio, composite or RF signal at the Device Under Test output and ensure the conformity with standards and regulations either on bench test or in-field operations

Audemat FMMC5 Band scanningBand scanning

Scan the FM frequency range and analyze the inband frequency occupation

Audemat FMMC5 FM Drive TestingFM Drive Testing

Carry-out in-car measurements to draw a map of FM transmitter coverage for one or multiple frequencies at a time and provide objective signal quality indicators based on market-proof technology - GoldenEar

Audemat FMMC5 Fully digital measurementsFully digital measurements

The AUDEMAT FM MC5 provides highly accurate and reproducible measurement as a result of its fully digital design and its digital calculation methods

Audemat FMMC5 Automatic measurementAutomatic measurement

Reduce time spent mesuring crosstalk, bandwidth, signal noise ration and THDN through the inbuilt standard functionality or customize measurement through the scripting API

Audemat FMMC5 Automatic reportsAutomatic reports

Generate customized reports once the measurement done and save time collecting data from various measurement generators and analyzers


user report

User report

We’ve been using the Audemat FM MC5 since the beginning of 2017. Overall, it’s a fantastic system and what really stands out to us are the All-in-One versatility of the instrument, its mobile Drive-by Measurement capability and Automatic Reports functionality. Our jobs of measurement and testing are made a lot easier thanks to these new product-enhancing features...

Danie Liebenberg, Sentech

Specifications

Current Version: 3.7

TECHNICAL FEATURES

MeasurementAUDEMAT
FM MC5
AUDEMAT
MODULATION ANALYZER
RF, MPX, Audio spectrum analyzer
RF, Pilot, RDS, AF frequency meter
RF level measurement
AM noise
FM deviation measurement MPX, M, S, Pilot, RDS, Aux
MPX power measurement
MPX & AF peaks recorder
Pilot/RDS synchronization and phase
L & R, L+R & L-R levels measurement
MPX & AF distortion meter
RDS analyzer
Oscilloscope
Vectorscope & Loudness
Automatic Crosstalk measurement
Automatic Bandwidth measurement
Automatic SNR measurement
Automatic THDN measurement
Inputs / Outputs
RF
MPX analog & AES digital
RF level measurement
Audio analog & AES digital
Ethernet network port Input
GPS Receiver Input
AUX output
Headset AF control output
Generators
FM generator
MPX generator with RDS
Test signal generator
Detectors
15 kHz / 20 kHz / 25 kHz  audio filter
AF peak ± peak/2 detector
AF RMS detector
CCIR 468-4 detector/filter

TECHNICAL SPECIFICATIONS

Frequency Range87 - 108 MHz
Power measurement between -50 dBm and +10 dBm+/- 0.5 dB
MPX  (absolute deviation measurement) +/- 0.2 %
Stereo separation> 65 dB
AF deviation (20 Hz – 15 kHz)+/- 0.1 dB
THD< 0.004%
SNR RMS>92 dB
Frequency deviation measurement
ITU-R SM.1268-1/ ITU-R SM.1268-2 / ITU-R SM.1268-3 / ITU-R SM.1268-4
FM broadcasting measurement
ITU BS412-9
Audio loudness and true-peak audio level measurement
ITU-R BS.1770-4 & EBU TECH 3341

PHYSICAL SPECIFICATIONS

External Dimensions (WxLxH)48 x 27,5 x 13 cm - 19 x 11 x 5 in
Weight4.45 kg - 9.8 lbs
Main Power Supply100-240 Vac / 12 Vdc
Power Consumption60 W
Operating temperature0°C - +40°C / 32°F to 113°F
Storage Temperatures-20°C - +70°C / -4°F to 158°F
Humidity10-95% non-condensing relative humidity

Order information

REFDescription
TF00421-B1AUDEMAT FM MC5
TF00421-A1AUDEMAT FM Modulation Analyzer
Software options
CD00159GOLDENEAR
Services
07962Training AUDEMAT FM Modulation Analyzer / FM MC5
06679Calibration fee for AUDEMAT FM Modulation Analyzer / FM MC5
7-079523 years service contract for metering products

AUDEMAT FM MC5 Delivery with flight case

Transportable
  • 1 External 200 V/12 V power supply
  • 1 Cigarette lighter cable
  • 1 Ethernet cable
  • 1 Male/male BNC cable (“N”) + 1 N/BNC adapter
  • 1 Antenna
  • 1 External GPS
  • 1 Folder including a CD-Rom, a quick start guide and a measurement synthesis report
AUDEMAT FMMC5 Flycase Transportable
