AUDEMAT MC6

Overview



The Audemat MC6 is the most comprehensive and versatile measurement platform available for DAB and/or FM.

Its primary function is to help broadcasters, network operators, regulatory authorities, and manufacturers ensure optimal service quality, full compliance with DAB and FM standards, and efficient equipment testing and validation. This all-in-one solution combines mobile RF coverage measurement, detailed modulation analysis, and advanced lab capabilities in a single compact and portable device.

Built on fully digital technology, the Audemat MC6 delivers outstanding measurement accuracy and integrates multiple high-performance receivers for DAB and/or FM. It also includes built-in signal generators and lab tools, making it ideal for both field operations and automated testing environments.

Unique on the market, the Audemat MC6 offers an unmatched combination of versatility, precision, and intelligent design — radically simplifying on-site commissioning, drive tests, and laboratory workflows.



Current Version: 1.2.0




Industry Recognition

Award-Winning Platform




Leading References


Conatel logo
Subtel logo
Telmaco logo
kronehit logo
eurocom logo
Inhouse technologies logos
uplink logo
Technique Service Broadcast logo
logic computer logo



Audemat MC6
Benefits

scalable icon

All-In-One
Versatile Equipment

  • DAB/FM Drive tests
  • Modulation analyzer
  • DAB/FM commissioning
Accuracy icon

High Measurement
Accuracy & Reproducibility

  • Fully digital, high-accuracy measurement
  • User-customizable measurement reports
  • Market-leading reproducibility
  • Unmatched levels of precision with its completely mathematical signal demodulation.
time saving icon

Time-Saving
Built-In Tools

  • Intuitive and responsive Web interface
  • Automatic measurement reports
  • Simultaneous measurement
  • Multiple DAB and FM receivers

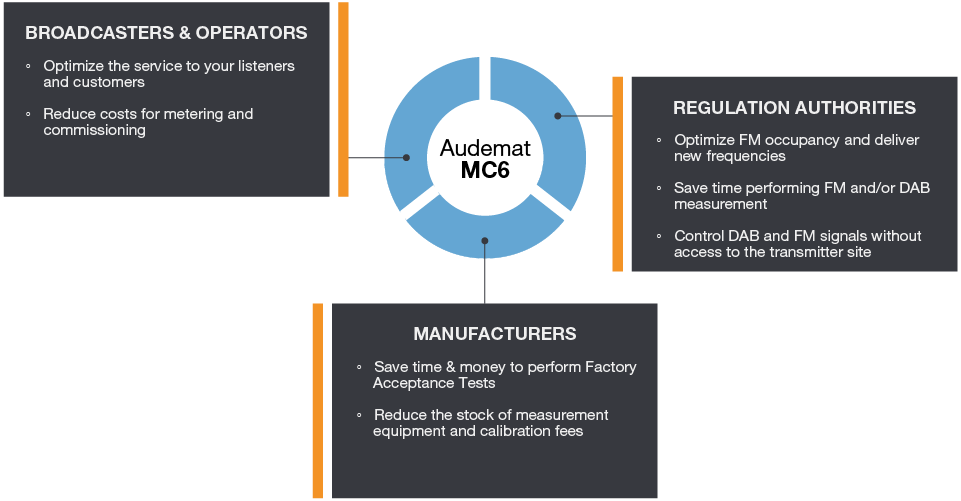

Perfectly Engineered For Broadcasters and Regulators


Audemat MC6 diagram for users


Software Modules

Scalable Solution. Powerful Features.



DAB/FM Band Scanner

Identify FM programs and DAB Multiplexes to launch a measurement, configure a drive test or identify unauthorized stations on the field.

DAB Analyzer

Check the key parameters during DAB transmitter installations, ensure the highest broadcasting quality (MER, Constellation, SFN, TII…) and analyze all DAB services.

FM Analyzer

Check the key parameters during FM transmitter installations, ensure a full compliance of the signals (frequency, deviation, MPX power, modulation, RDS…) and compare your program with the competition.



Automatic Reports

Generate highly accurate and complete measurement report following DAB or FM transmitter installations and on regular basis.



Audio Analyzer

Measures analog and AES audio levels, with spectrum display, vectorscope, and level over time. Ideal for analyzing the broadcast chain and quickly identifying common issues such as incorrect levels, left/right imbalance, or phase inversion.

DAB/FM Drive Tester

Analyze your real coverage, identify potential issues and generate in-depth reports for FM or DAB. Reduce the drive time and costs thanks to multiple DAB and FM receivers on-board.



GoldenEar

GoldenEar algorithm provides mathematical and objective quality ratings of DAB and FM signals received during a drive test. Used by major broadcasters and regulators for decades, this software technology simplifies analysis and reporting.

Generators

Generate reference test signals to validate and calibrate your broadcast equipment. The MC6 includes analog and AES audio and MPX signal generators, enabling you to feed the equipment under test with precise and stable reference signals for configuration, qualification, and alignment.


Automatic Lab Measurements

This module adds advanced measurement features such as distortion analysis and oscilloscope functions, providing deeper insight into equipment performance. It also enables full control of the Audemat MC6 via Telnet commands, making it ideal for automated test benches, factory acceptance tests, or for significantly accelerating lab workflows.






A Wide Scope Of Services For Optimal Performance

To ensure you benefit from all the help, support, and information you need to make sure your system continues running at optimal performance and with all the latest upgrades, it is accompanied with a mandatory 3-year service agreement:

  • Factory calibration every 3 years
  • Software upgrade
  • Priority support
  • Free loan unit during repair
  • Warranty with extension up to 10 years



A few words from our expert



“We proudly introduce the Audemat MC6, a culmination of invaluable user feedback, our company’s expertise, and numerous technological advancements. The result is a multi-receiver and multi-standard solution, housed within a more powerful, compact, robust, and highly scalable platform, surpassing its predecessors in every aspect.”

- Gregory Mercier, Director Product Marketing -
WorldCast Systems




What people are saying



“I would definitely recommend the Audemat FM MC5 as a measurement solution for the FM broadcasting environment. One of Sentech’s key strategic pillars is to operate more efficiently. The FM MC5 provides this in more ways than one and in our opinion, its best features are its all-in-one versatility and drive-by test capability which has massively simplified things for us.”

- Danie Liebenberg, Team Leader in Operations -
Sentech, South Africa



Featured Success Stories

All-In-One Measurement Solution Meets Sentech's Requirement In Rugged Terrain

Customer: Sentech, a leading broadcast operator in South Africa

Dougall Media Uses Audemat FM Modulation Analyzer For Accurate, Portable FM Measurement

Customer: Dougall Media, a privately-owned media company in Ontario, Canada
